Canoe Kits

2 Panels cut out.JPG
Example plywood only canoe hull parts

See the Stitch & Tape boat building method building a canoe here.

All our kits are cnc cut and have our simple plank scarfing (joining) method except in the Peasemarsh 8 and 2 piece canoes.

Puzzle cut joint shown above is an option. Please request with order.



Full Kit Contents

Cut from a high quality plywood you will receive all the hull panels with stitch holes drilled, wood for the trim (gunwales, inwales) and a yoke. Bulkheads and decks are included to form the bouyancy chambers with hatches and the holes cut for them.  Various other options could be incuded.

See individual kits for full contents

Plywood Only Pack Contents

Cut from the same high quality plywood you will receive all the hull panels.

This will include any bulkheads, decks or frames that are required for that design.

The stitch holes are drilled.

Hatch holes will not be cut unless requested.

See individual kits for full contents

If you require anything not listed with the kits or an extra you want, please contact us.



Pay for your kit in 3 interest free instalments.

(Click Details and Options for amount)

Prices below do not include any current discounts or offers. Click Details & Options for current prices.

Lead times are currently 7 - 21 days.

Contact us for further details.

Peasemarsh 8
The Peasemarsh 8 is an easy to build canoe 8'  at 7' - 7" (2.31m) long and 2' - 2" wide at it's widest point which will take a paddler weighing up to 11st (70kg). It takes around 20hrs to build from the full kit. What makes this an easy build is that the individual hull panels are supplied in one piece so you can have the hull stitched together and the first stage of the gluing done on the same day you receive it. Once on the water it's a great little fun canoe.
Full Kit Contents;
All hull panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, deck supports and drain plugs.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

This kit is only avalable as the Full Kit - £425
CFPM8 6 (1800x605).jpg
20171024_160742 (2).jpg
20171025_144537 (2).jpg
Peasemarsh 10
Loa 10’ – 0” (3.05m)  Beam 2’ – 7” (0.79m)  Weight (apprx.) 40lbs (18kgs)  Max. Load (apprx.) 350lbs (159kgs)  Height at Bow/Stern 18"/18" (0.46m/0.46m)   Height amidships 11.5" (0.29m)   Crew 1 plus maybe a small 1

Another easy to build canoe which will take a solo adult paddler weighing up to 15st (95kg). It takes around 25hrs to build from the full kit and you can have the hull stitched together on the same day you receive it. There is an option to build it in two sections that bolt together.
Full Kit -  £725.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack - £425
Contents -
All hull half panels CNC cut with stitch holes drilled includes bulkheads and decks.
15 All pulled together and tight ready f

A video of a Peasemarsh 10 being stitched together - speeded up, a bit.

All our Stitch & Tape canoes are assembled this way. Our dinghies too with a transom(s) stitched in instead of drawing the ends in.

Peasemarsh 12
Loa 12’ – 6” (3.81m)   Beam 2’ – 9” (0.84m)    Weight (apprx.)   45lbs (20kgs)    Max. Load (apprx.) 400lbs (181kgs)   Height at Bow/Stern  19"/19" (0.48m/0.48m)    Height amidships   12" (0.30m)    Crew    1 plus 1 light one

A great project for 2 adults to build and get out on the water after around 30hrs to build time from the full kit. Ideal for a day out on the water or a camping trip. It goes together easily with a simple plank joining method to get the length you need. There is an option to build it in two sections that bolt together as with the Peasemarsh 10.
Full Kit - £825.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack - £535.00

Contents - All hull half panels CNC cut with stitch holes drilled includes bulkheads and decks.
Peasemarsh12 W6.jpg
18 The hull is turned over and cleaned u
Peasemarsh 14
Loa 14’ – 6” (4.4m), Beam 2’ – 10” (0.86m), Weight (apprx.) 50lbs (22.5kgs),  Max. Load (apprx.) 580lbs (263kgs),  Height at Bow/Stern 21"/21" (0.53m/0.53m),  Height amidships 13" (0.33m),  Crew 2/3Adults.

A great project to get up to 3 adults paddling after around 40hrs build time from the full kit. Ideal for a day out on the water or a camping trip. As with the 12, it goes together easily with a simple plank joining method to get the length you need.
Full Kit - £935.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack -£595.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks.
The Swan near Stoke Gabriel M.O. Dartmou
Peasemarsh 16
Loa 15’ – 6” (4.72m)   Beam 3’ – 0” (0.914m)    Weight (apprx.) 60lbs (27kgs)    Max. Load (apprx.) 650lbs (295kgs)  Height at Bow/Stern 22"/22" (0.56m/0.56m)    Height amidships 13" (0.33m)    Crew 3+

A great project to get up to 3 or 4  adults paddling after around 45hrs build time from the full kit. As with the 14 footer, it as ideal for a day out on the water or a camping trip and still goes together easily with a simple plank joining method to get the length you need.
Full Kit - £999.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack - £625.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks.
Peasemarsh 12 2.jpg
Dengemarsh 10

Length 10' - 0" (3.048m)    Beam 2' - 9" (0.813m)    Depth (midships) 1' - 0" (0.305m)    Height fwd/aft 1' - 7" (0.483m) Dry Weight (approx.) 38bs (17kgs)    Crew 1 Adult or 2 Children

The Dengemarsh canoe is based on the Peasemarsh but with an extra plank which makes for a slightly rounder hull. An open “Canadian” style canoe along the lines of the Peasemarsh design but with an additional plank each side. There is optional buoyancy fore and aft using the bulkheads  and enclosed with a flush fitting deck, both supplied. It goes together easily and quite quickly and once completed, looks good and gives good performance on the water. Designed to be paddled with 1 adult  or 2 children while kneeling but a seat(s) could be fitted.
Full Kit - £745.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack - £435.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks.
IMAG0231 (800x398).jpg
PM10-1 (800x259).jpg
Dengemarsh 12
Length 12' - 6" (3.81m),  Beam 2' - 9" (0.84m), Depth (midships) 1' - 0.5" (0.32m),  Height fwd/aft 1' - 7.5" (0.49m),  Weight (approx.) 44lbs (20kgs),  Crew 2 Adults  #


Built-in buoyancy is supplied fore and aft using bulkheads and decks fitted with small hatches for storage of valuables etc. It takes between 30 and 40 hours to complete. This canoe is ideal for a solo paddle but will also take 2 adults and some gear for day trip or weekend camp etc. or perhaps a day on the water for the kids. It goes together easily and quite quickly. Once completed, it looks good and performs well on the water too. I love the lines of this canoe.
Full Kit - £835.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks, wooden trim, yoke, deck supports and hatches.  Epoxy pack with resin, hardener, dispenser pumps, fillet additive, cable ties, fibreglass tape, gloves, mixing sticks and pots. Everything needed to build the hull ready for preparation for paint and varnish.

Plywood Only Pack - £535.00
Contents -
All hull half panels CNC cut with stitch holes drilled including bulkheads and decks.
DM12Christopher Munro.jpeg
2012-05-30 12.02.51.jpg

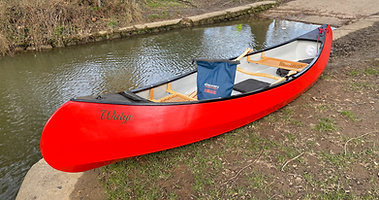

Dengemarsh 14 Open Canoe - NEW KIT

Length 14' - 6" (4.42m),  Beam 3' - 0" (0.91m), Depth (midships) 1' - 2" (0.36m),  Height fwd/aft 1' - 9.5" (0.55m),  Weight (approx.) 52lbs (23.57kgs),  Crew 3 Adults, Maximum Load 600lbs (272kgs)

Built-in buoyancy fore and aft that can be fitted with small hatches for storage of valuables etc.
Built in 6mm plywood throughout and requires between 30 and 40 hours to complete.
This canoe is good for a solo paddle but will also take 3 adults and some gear for day trip or weekend camp etc. or perhaps a day on the water with the kids.
It goes together easily and quite quickly. Once completed, it looks good and performs well on the water too.
Designed to be paddled while kneeling but seats could be fitted.

Kit contents

Full Plywood Epoxy Kit - £960.00

Contains 3 packs, everything you need to build the hull to a stage where you only need to add paint/ varnish.

Pack 1. Wood & Plywood pack. all the CNC cut plywood parts, planks, bottom plank and decks, ready for assembly. Wood for trim and deck supports.

Pack 2. Epoxy Materials Pack. All the epoxy materials required - resin, glue fillet additive, FG tape, gloves and mixing sticks.

Pack 3. Cable ties, yoke, hatches and other sundry items.



Standard Plywood Only Option Pack - £610.00

Contains Plywood Hull Panels CNC cut with stitch holes. (Confirmation after order)

Kits are delivered as two or more packages.


Newmarsh 12 Open Canoe


Length  3.81m  (12' - 6"), Beam    .864m  (2' - 10"), Height Fore & Aft  .559m (22"), Height amidships  .330m  (13.5"), Dry Weight of around  21kg (45lbs). Maximum Load  182kgs  (400lbs), Crew  2

Designed for a day trip or just some fun on the water and to be paddled while kneeling or possibly sitting on the bottom, as I do, but can be fitted with simple plywood seats.
Easily moved about on dry land by an adult with one hand using the centre bar/yoke. Just as easily carried by two people to the water.
Once on the water you will find this canoe performs well and is relatively stable. It is ideal for a solo paddle but will do just as well with two adults.
This canoe was designed to be built using the Stitch & Tape and Clinker ply methods but the kit is supplied to be built using the Stitch & Tape method.
It can be built in either 4mm or 6mm plywood but the kit is supplied in 5mm and when finished, is a very good looking craft - in my opinion.



Kit contents

Full Plywood Epoxy Kit - £995.00

Contains 3 packs, everything you need to build the hull to a stage where you only need to add paint/ varnish.

Pack 1. Wood & Plywood pack. all the CNC cut plywood parts, planks, bottom plank and decks, ready for assembly.

Pack 2. Epoxy Materials Pack. All the epoxy materials required - resin, glue fillet additive, FG tape, gloves and mixing sticks.

Pack 3. Cable ties, yoke, hatches and other sundry items.



Plywood Only Pack - £N/A

Contents - All hull half panels CNC cut with stitch holes drilled includes bulkheads and decks.



Kits are delivered as two or more packages.

Newmarsh 12image1 (1).jpeg

New Bay 11 Open Canoe


Loa 10’ – 10” (3.332m), Beam 2’ – 6” (0.8109m), Weight (apprx.) 40lbs (18kgs), Max. Load (apprx.) 350lbs (159kgs), Height at Bow/Stern 17"/17" (0.432m/0.432m),  Height amidships 12 1/4" (0.311m), Crew 1 adult or two children

Designed for me to go canoeing with my eldest two in their Peasemarsh 10's. Although I could have used my old Peasemarsh 16 that would normally carry me, my wife and the two youngest, I wanted something different just for me so, I designed the New Bay 11 having liked the performance of the 15 previously during trials. The 11 did not disappoint. It was easy to build and performed as I wanted. This is actually my favourite canoe.

Kit contents

Full Plywood Epoxy Kit - £725.00

Contains 3 packs, everything you need to build the hull to a stage where you only need to add paint/ varnish.

Pack 1. Wood & Plywood pack. all the CNC cut plywood parts, planks, bottom plank and decks, ready for assembly. Wood for trim and deck supports.

Pack 2. Epoxy Materials Pack. All the epoxy materials required - resin, glue fillet additive, FG tape, gloves and mixing sticks.

Pack 3. Cable ties, yoke, hatches and other sundry items.



Plywood Only Option Pack - £425.00

ContainsPlywood Hull Panels CNC cut with stitch holes. (Confirmation after order)

Kits are delivered as two or more packages.


Burmarsh 13 Open Canoe

Length 13' - 4" (4.064m), Beam 3' - 0" (0.91m),  Depth (midships) 1' - 1" (0.33m),  Height fwd/aft 1' - 7.5" (0.49m),  Weight (approx.) 44lbs (20kgs),  Crew 2/3 Adult (Plus gear)

A simple open canoe designed for a for a solo paddle but also able to take 2 adults and some gear for day trip or weekend camp etc. or perhaps a day on the water with the kids. In the past 3 years it has been converted to sail by several builders. They have been creative from adding simple out riggers and sailboard sails to adding more complicated rigs.
The kit is supplied in 5mm or 6mm plywood and will take 30 to 35 hours to complete.
It goes together easily and quite quickly. Once completed, it looks good and performs well on the water too. Has built in buoyancy fore and aft that can be fitted with drain plugs or small hatches to enable storage of valuables etc.
Designed with seating positions at the centre plus fore and aft.



Kit contents

Full Plywood Epoxy Kit - £935.00

Contains 3 packs, everything you need to build the hull to a stage where you only need to add paint/ varnish.

Pack 1. Wood & Plywood pack. all the CNC cut plywood parts, planks, bottom plank and decks, ready for assembly. Wood for trim and deck supports.

Pack 2. Epoxy Materials Pack. All the epoxy materials required - resin, glue fillet additive, FG tape, gloves and mixing sticks.

Pack 3. Cable ties, yoke, hatches and other sundry items.



Standard Plywood Only Option Pack - £595.00

Contains Plywood Hull Panels CNC cut with stitch holes. (Confirmation after order)

Kits are delivered as two or more packages.


  We can cut a kit from any of our canoe designs

   Including Plywood Only packs

  If a design your're interested in is  not listed, please contact us for details.

Build times are an estimate based on feedback and relate to the hull build up to preparation to paint stage.
A build could take a little less time or possibly more.
Delivery is Included for UK Mainland Only - Highlands & Islands and N.I. have a courier surcharge of £48 added.
Please contact us for these areas or if you need any further information.
