Loa 2.26m (7’ – 6”)
Beam 1.19m (3’ – 11”)
Draft 0.127m (0’ – 5”)
Dry Weight 22.5kgs (50lbs)

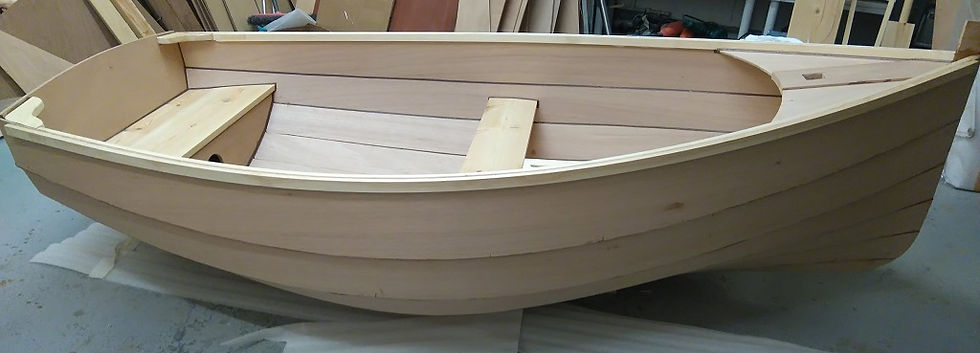

The Winchelsea 2.2 is available as a kit and as DIY plans. It is a little smaller than the Winchelsea 8 and the planks can be cut from a standard sheet of 2.44m x 1.22m plywood - no scarfing required. It is different from its larger sister as it does not have a long keel which is replaced by a flat keel plank onto which a length of timber and a skeg are fitted. The open edge of the stem is capped with thin strips of wood that are carefully bent round to join at the keel. The flat keel plank makes for an easier build but it is still built in the same way - over a mould. However, it could be built using stitch & tape if you don’t mind the stitch holes. If you’re painting your hull inside and out, this is not a problem but, if you want to varnish your hull then I wouldn’t use it.


Basic Materials Required
Plywood – 2 sheets of 6mm exterior or marine grade for the hull, 1 sheet of 9mm or 12mm ply for the mould, transom and the seats, for the knees and breast hook. Solid timber lengths for the sheer trim 2.4m or longer. (The mould can be made from 12mm chipboard or MDF as a possibly cheaper option). 4.5kg Epoxy pack


Available Options



Plans Packages –

Digital Download Plans  - £15   From the download option

A3 Printed Workshop Plans  - £25   A3 drawings with full instruction manual

Full Size Paper Patterns Plans   - £45   Full size paper patterns of the main hull components with full instruction manual



Winchelsea 2.2 - Options from

SKU: WIN22A3
£30.00 Regular Price
£24.00Sale Price
Available Options
