Loa 3.04m (10’ – 0”)
Beam 1.37m (4’ – 6”)
Draft 0.178m (0’ – 7”)
Apprx. Dry Weight 39kgs (85lbs) Rowing Version

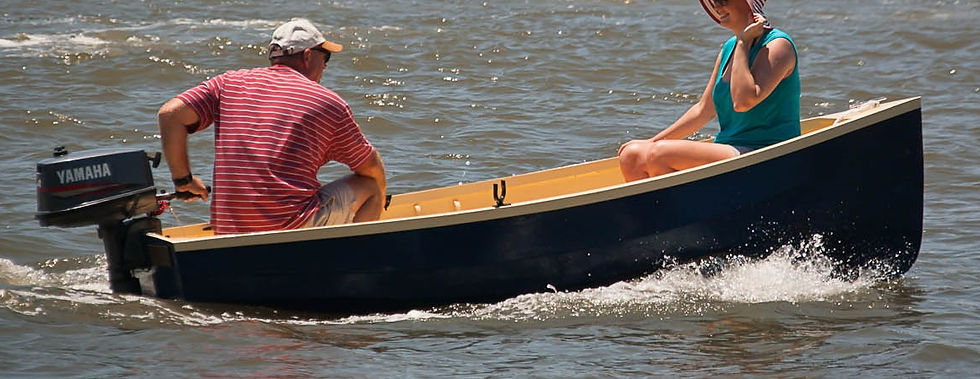

These plans are for the "WINCHELSEA 10". The pictures above show two great examples from first time builders. A very similar looking larger version of her 8’ sister, continuing with the clinker style hull, 6 planks per side, multi-purpose Rowing/Motor or Sailing dinghy that can be used as a tender to a yacht or larger vessel or for a day of fun on the local water. She is 10’ - 0" in length, 4’ - 6" beam and designed to be as light as possible for her size and construction. Although she could be carried on the roof rack of a large car, she is far more suited to a small trailer. She will also take a small lightweight outboard 2hp - 3.5hp for motoring up and down the local river, canal, harbour or around the local lake. Electric outboards are an option with this boat too. The plans detail the transom outboard pad to add strength. Built in buoyancy bags can be added by enclosing the seats or fitting inflatable buoyancy bags. The plans are available for a rowing/motor or full sailing version or you could build to rowing/motor standard now and add the sail rig later. .

Basic Materials Required
3 sheets of 6mm exterior or marine grade for the hull, 1 1/2 sheets of 12mm ply for the moulds and keel/centre frame (unless using 18mm) and transom, plus half a sheet of 9mm or 12mm for the seats, knees and breast hook, or solid timber to fit 6kg Epoxy pack



Available Options



Plans Packages –

Digital Download Plans - £17 From the download option

A3 Printed Workshop Plans - £35 A3 drawings with full instruction manual

Full Size Paper Patterns Plans - £65 Full size paper patterns of the main hull components with full instruction manual

Kit Options

Plywood Only Kit - £675.00

Contains all the plywood parts, planks, keel plank, frame/mould and transom, ready for assembly.

Both Options come with the full instructions pack for the build.



Full Plywood Epoxy Kit - £1125.00

Contains 3 packs, everything you need to build the hull to a stage where you only need to add paint/ varnish and a set of oars or a motor.

Pack 1. Wood & Plywood pack. Planks, keel plank, frame/mould and transom, ready for assembly. The wood for the seats and trim is also included.

Pack 2. Epoxy Materials Pack. All the epoxy materials required - resin, glue fillet additive, FG tape, gloves and mixing sticks.

Pack 3. Cable ties and other sundry items.



Custom Built Ready for the Water – from £1425 for standard build

The standard built boat is built in a quality marine plywood, trim and seats are fitted with bottom runners to complete the build. The hull is then finished - one colour outside, white or varnished inside with varnished wood trim and seats. Black nylon rowlocks, basic wooden oars, a 5m mooring rope fitted and it's ready to launch. If you prefer, these boats can be built to order which gives you an opportunity to decide on a colour and make any other changes you might want. Depending on those changes, your boat could be ready in 14 - 28 days from the price below. We build your boat to your specification on our standard hull build adding or omitting items as you want it.



Custom Built Boats are Collection Only





Winchelsea 10 - Options from

SKU: Win10A3
£35.00 Regular Price
£28.00Sale Price
Available Options
